How much space does ZSTORE XL give me?

Each module adds 320 ft² and about 20 pallet positions: a 2XL is 640 ft², a 6XL is 1,920 ft². There is no upper limit: our largest installation is a 21,500 ft² cold distribution center.

What temperatures can it hold?

Anywhere from -40°F to +104°F (-40°C to +40°C). It can run as a freezer, a cooler or a processing area, and can be set up with independent temperature zones.

How long does it take to get running?

Delivered in under 60 days and installed in 2–5 days, turnkey and with no construction, versus months of construction for a traditional facility.

What happens if a refrigeration unit fails?

Every module runs Thermo King MP5000 refrigeration with automatic backup. If one unit fails, the adjacent units compensate, and ZTrack alerts you in real time.

Can I expand or downsize later?

Yes. Start with 2 modules and add or remove modules as your season changes: you only pay for the capacity you use.

Can I rent, or only buy?

Available as a monthly rental, a seasonal rental or a purchase. We'll recommend the option that best fits your operation.

Can ZSTORE XL be installed indoors?

Yes. ZSTORE XL works outdoors or inside an existing building, at floor level or at truck height, for example to turn a dry warehouse into freezer space.

ZSTORE XL

Name: ZSTORE XL
Brand: ZGROUP

Walk-in cold storage of any size, assembled in days. Cooler and freezer under one roof, with built-in backup.

View models

Unlimited

size

-40°F / +104°F

operating range

Turnkey

installation included

5 years

Thermo King warranty

What is ZSTORE XL?

ZSTORE XL is an engineered walk-in cold room built from 40' modules joined side by side into one open space. Install it wherever you need it, grow it as you grow, and move it when your operation moves.

Built-in redundancy

If one unit stops, the others keep the room cold: your product is never at risk.

Lower energy use

Modules share one open space with no inner walls, so you get more usable floor and less energy per square foot than with single containers.

Real picking space

One open, continuous floor, not a row of narrow boxes.

Anywhere

Indoor or outdoor, at floor level or truck height, and relocatable.

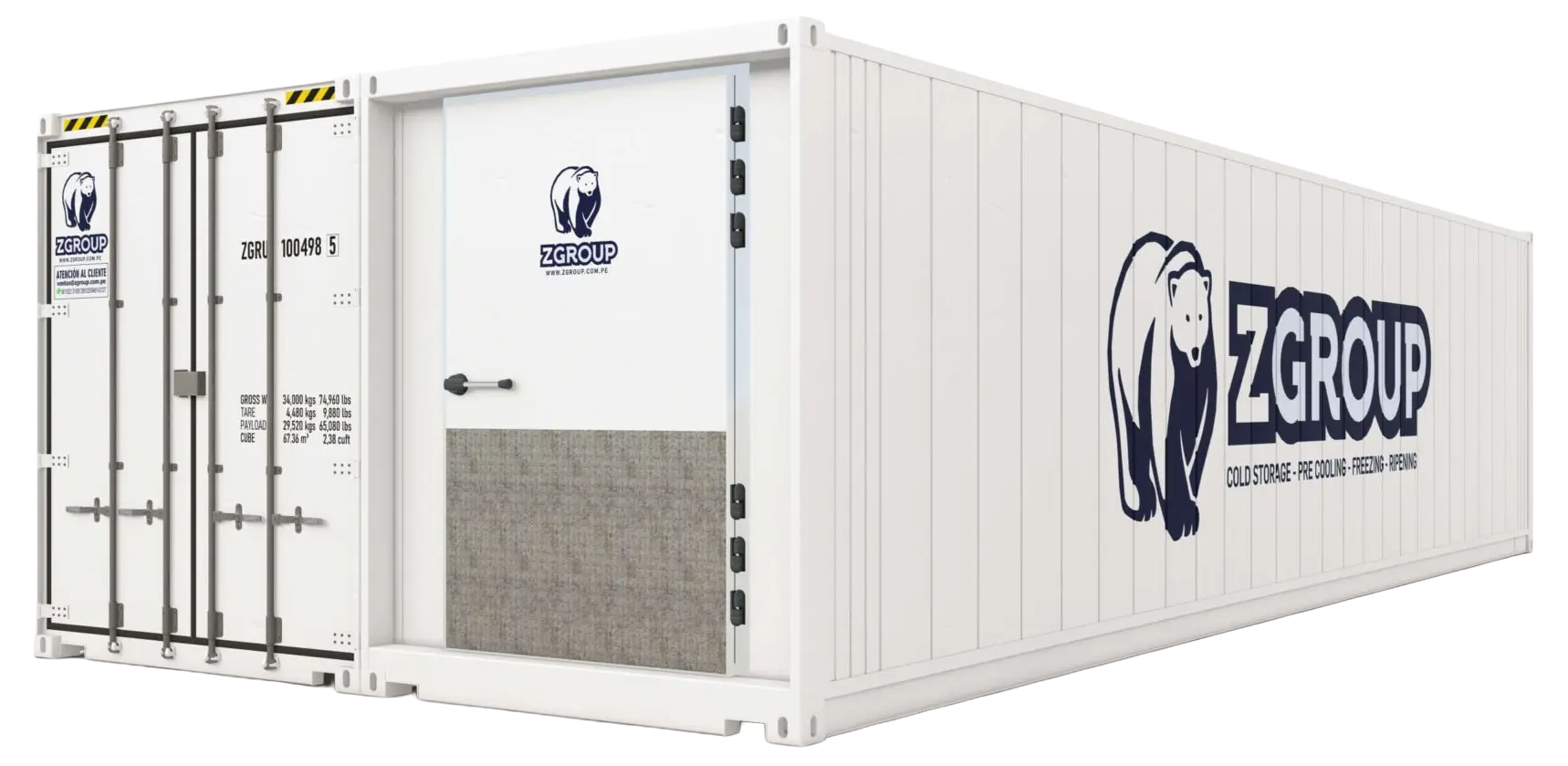

ZSTORE 2XL

Base configuration of 2 connected modules. 40 pallets of capacity with full backup and energy efficiency.

Capacity

40 Pallets

Temperature

-40°F to +104°F

External width

16'

Success stories

01 / 24

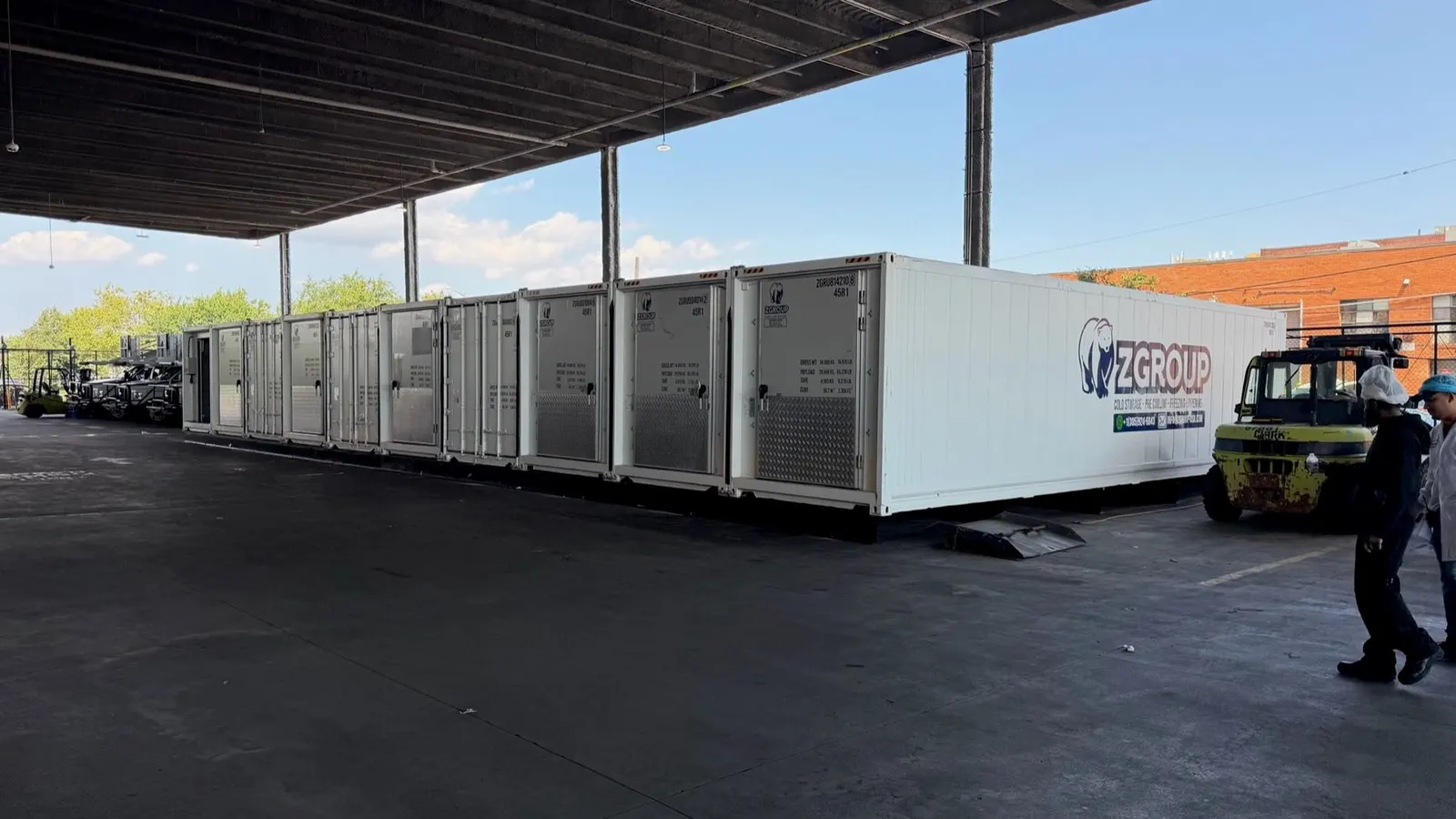

ZSTORE 9XL × 2 JFK Airport, NY, USA

Airline caterer

This caterer feeds 70% of the airlines at JFK from two facing buildings that had run out of room. ZGROUP expanded both: a 9XL plus extra units at the first, a 9XL and a 40' reefer on I-beams at the second to respect floor loads.

8,000 ft²

floor area

Dual temp

cooler + freezer

2× space

same energy

Read the full story

Technical specifications

Model

External dimensions (ft)

LengthWidthHeight

Internal dimensions (ft)

LengthWidthHeight

Capacity

2XL

40'

16'

9'6"

37'5"

15'7"

8'4"

40 Pallets

3XL

40'

24'

9'6"

37'5"

23'7"

8'4"

60 Pallets

4XL

40'

32'

9'6"

37'5"

31'6"

8'4"

80 Pallets

5XL

40'

9'6"

37'5"

39'7"

8'4"

100 Pallets

6XL

40'

48'

9'6"

37'5"

47'6"

8'4"

120 Pallets

Power required

440–480V · 3PH · 60Hz

Refrigerant

R-404a · R-134a

Temperature range

-40°F to +104°F

Warranty

5 years

Built-in redundancy

Every module runs Thermo King MP5000 refrigeration with automatic backup and ZTrack 24/7 monitoring. If one unit fails, the adjacent units pick up the load: your cold chain never depends on a single machine.

Features

01 / 06 · -40°F to +104°F control

ZSTORE XL vs traditional cold storage facility

Feature	ZSTORE XL	Traditional facility
Time to operation	Delivered in under 60 days, installed in 2–5 days	Months of construction
Construction	none	full build-out
Scalability	add or remove modules	new construction
Business continuity	automatic backup between modules	single point of failure risk
Remote monitoring	ZTrack on every unit (subscription)	separate system

Total control with ZTrack

Your cargo under control from anywhere, without walking out to the unit.

24/7 monitoring

Temperature, humidity and door status in real time.

Remote control

Change the set point from your phone or computer.

Instant alerts

Notified the moment anything drifts out of range.

Audit-ready logs

Automatic history for food-safety compliance.

Discover ZTrack

ztrack.app · demo view

Unit 20RH · 2041Online

Temperature

-0.4°F

Humidity

85%

Door

Closed

Last 24 hSet point -0.4°F

Defrost completed2 h ago
Door open 3 min — alert sent5 h ago
Set point changed to -0.4°Fyesterday

Frequently asked questions

We join 40' modules side by side and remove the inner walls, so the modules form one open walk-in cold room. Each module has its own Thermo King unit, so the room has built-in redundancy, plus a food-grade floor and LED lighting.
