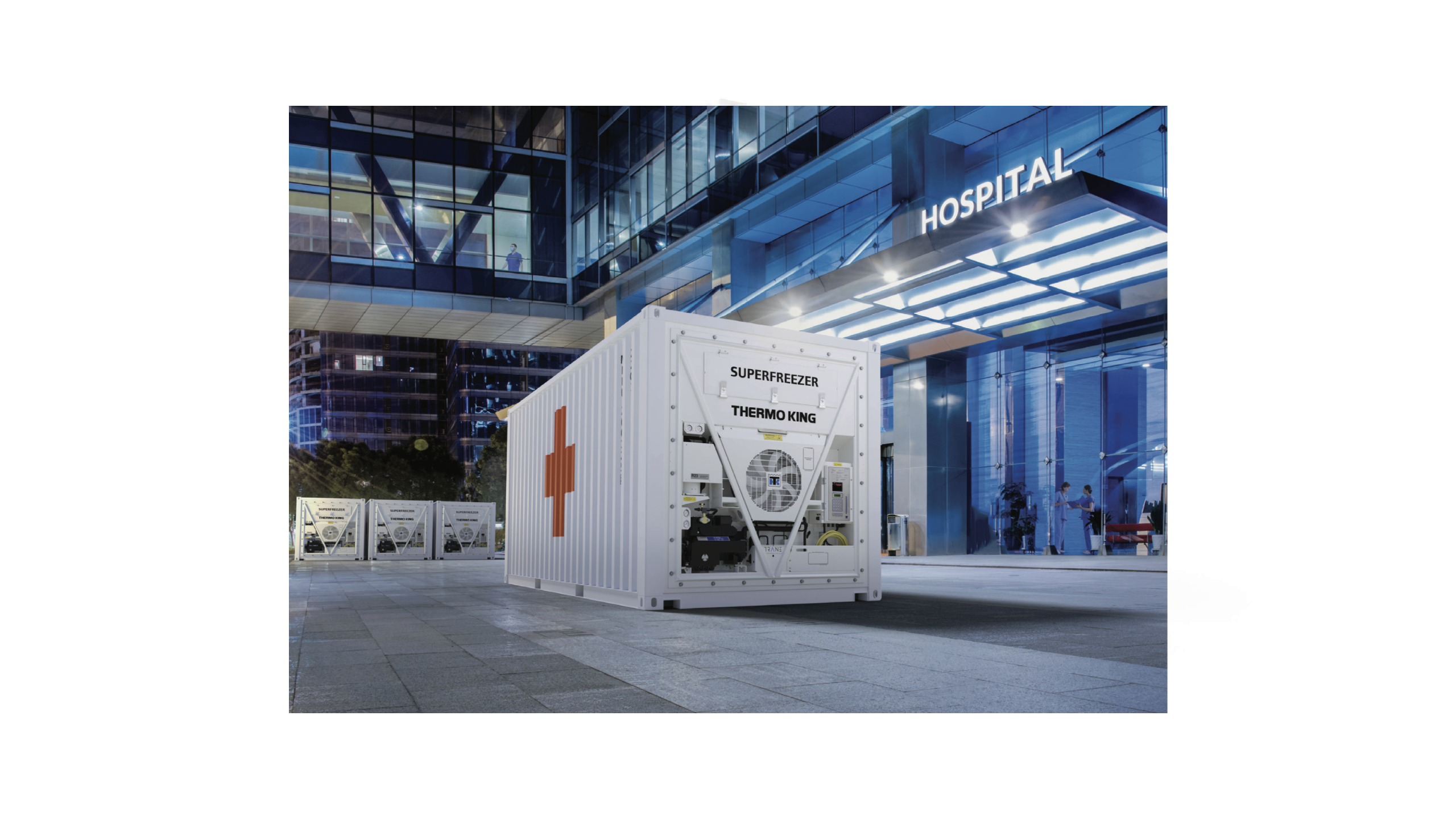

ZGROUP USA’s Super Freezer Containers are engineered to deliver extreme cold chain protection for the world’s most sensitive products — from sashimi-grade tuna to biotech vaccines.
ideal for seafood, pharma, biotech & research
rugged enough for sea, air, or land freight, and fully certified for stationary use
advanced dual-circuit refrigeration using R-134a + R-23 gases
factory-installed real-time telematics for remote data & alerts
validated for vaccine storage and pharmaceutical logistics
optional backup generator integration for power continuity

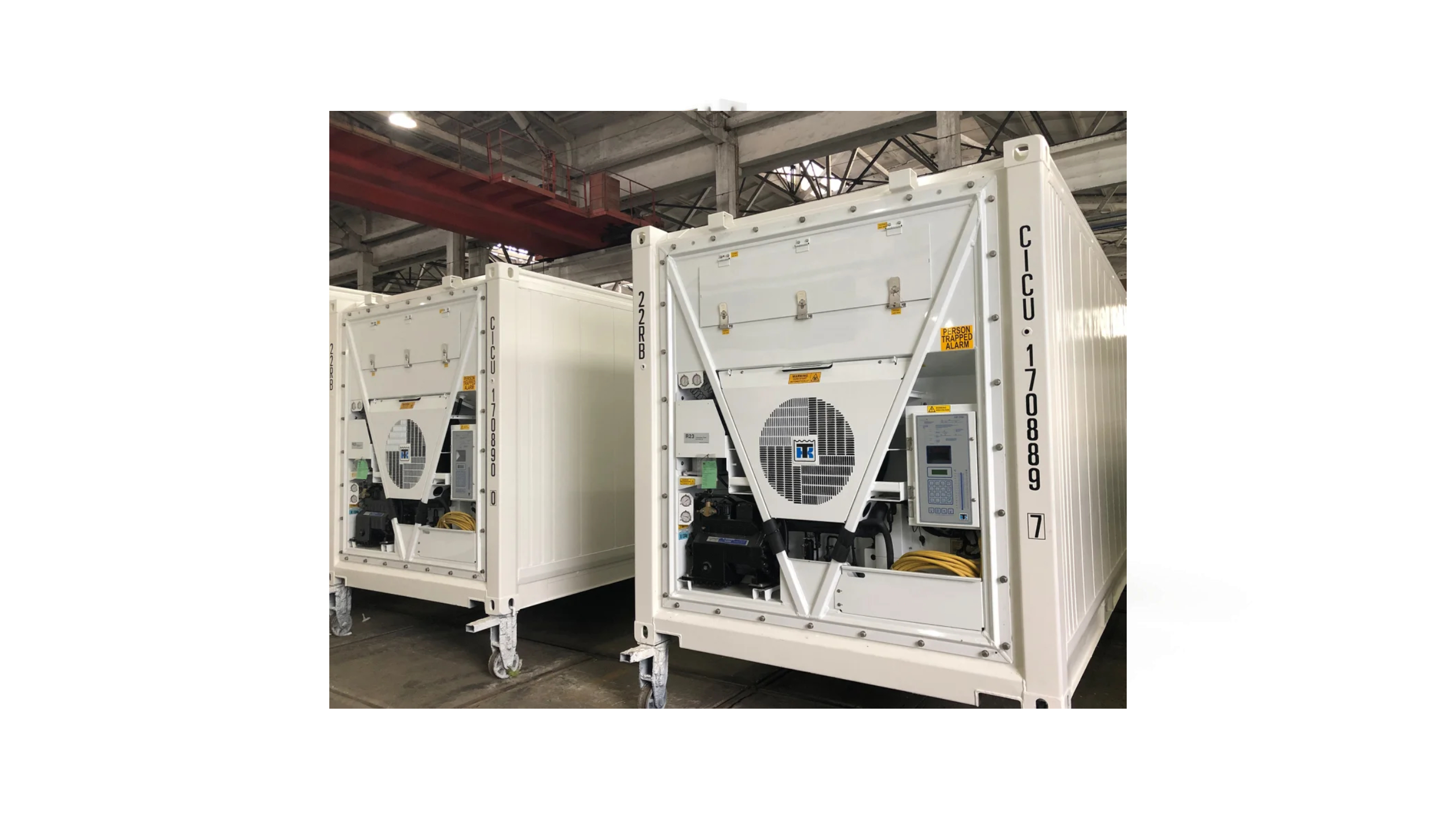

10ft and 20ft marine-grade containers with reinforced insulation and easy-access design
“At -70°C, enzymatic activity and microbial spoilage stops completely
— ensuring pristine color, texture, and flavor even after weeks of storage.”
ZGROUP’s Super Freezer is fully GDP Pharma Certified, making it suitable for:
Each unit undergoes extensive temperature mapping and validation with 30+ data points and sensors, ensuring ±1°C precision control across the chamber.
70°C to -10°C
±1°C precision
Cascade system (R-134a & R-23)
3-phase / Genset
10ft & 20ft ISO
GDP Pharma, ISO1496-2, USDA, CE, AHRI, ABS, TIR
CSC compliant, forklift and crane movable
Long-term tuna and sashimi preservation at -60°C to -70°C
Vaccine logistics, raw materials, blood plasma storage
R&D sample and compound storage
Sensitive components, semiconductors, battery testing
Cultures, enzymes, dairy ferments
Testing of composites and materials
| Container | Internal Volume | Temp Range | Certifications |
|---|---|---|---|
|
10ft
|
~11.1 m³ |
-70°C to -10°C
|
GDP Pharma, CSC, ISO1496-2 |
|
20ft |
~24.3 m³ |
70°C to -10°C |
GDP Pharma, CSC, ISO1496-2 |
| Length(ft) | Width(ft) | Height(ft) | |
|---|---|---|---|
|
External Dimension |
20 |
8 |
9.6 |
|
Internal Dimension |
17.6 |
7.5 |
8.5 |
|
Max Cargo Height |
8 |
|
|
|
Floor Area |
132 |
|
|
|
Power Requirement |
400~500V – 3 phase – 60Hz |
|
Protection |
32Amp Breaker |
|
Temperature Range |
-40F to +102F |
|
Refrigerant Gas |
R-404a | R-134a |
| Length(ft) | Width(ft) | Height(ft) | |
|---|---|---|---|
|
External Dimension |
40 |
8 |
9.6 |
|
Internal Dimension |
37.7 |
7.5 |
8.5 |
|
Max Cargo Height |
|
|
|
|
Floor Area |
282.75ft² |
|
|
|
Power Requirement |
400~500V – 3 phase – 60Hz |
|
Protection |
32Amp Breaker |
|
Temperature Range |
-40F to +102F |
|
Refrigerant Gas |
R-404a | R-134a |
| Length(ft) | Width(ft) | Height(ft) | |
|---|---|---|---|
|
External Dimension |
53 |
8 |
9.6 |
|
Internal Dimension |
51.1 |
7.5 |
8.5 |
|
Max Cargo Height |
|
|
8 |
|
Floor Area |
383.25 |
|
|
|
Power Requirement |
400~500V – 3 phase – 60Hz |
|
Protection |
32Amp Breaker |
|
Temperature Range |
-40F to +102F |
|
Refrigerant Gas |
R-404a | R-134a |
Standard features: flat floor, internal lighting, low-temp curtains, escape hatch, door switch, vacuum valve
All units are delivered fully tested and certified with individual Pharma GDP documentation per container.
